㈠Characteristics：
Ⅰ Rated DC Current: The DC current when the inductance
becomes 10% lower than its initial value or DC current when
temperature of coil is increased to 40 ℃ (Ta-25℃）
The smaller one is defined as Rated DC Current.
ⅡOperating temperature range: -40 ～ 125°C
㈡Features：

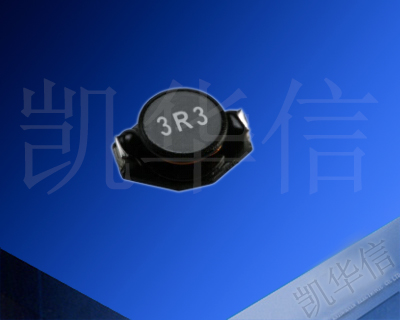

ⅠHigh power, High saturation inductors
ⅡIdeal inductors for DC-DC converters in notebook
computer, PDAs, Step-up or step-down converters,
flash memory programmers, etc.
ⅢPD1608 used ceramic base with gold-platings.
ⅣThe others used LCP plastic base
㈢Applications：
ⅠPower Supply For VTRs..
ⅡLCD Televisions
ⅢPersonal Computers.
Ⅳ Handheld Communication
Ⅴ DC/DC Converters, etc.
㈣Dimensions( AxBxC）：
1608: 6.60×4.45×2.92,3308: 12.95×9.40×3.00，3316: 12.95×9.40×5.21
3340: 12.95×9.40×11.43,5022: 18.54×15.24×7.11
㈤Tolerance：
M:±20%
㈥Inductance：
1R0= 1.0μH,470= 47μH,101= 100μH
 |  |  |  |  |  |  |  |
 |  |  |  |  |  |  |  |  |  |  |
